Repository-Based J2EE Development
Dr. Paul Dorsey, Dulcian, Inc. & Yalim Gerger, Gerger
Consulting
I. The Problem
The current web applications development product environment
is clearly not ideal. It has many different components and is difficult to
navigate. The resulting systems are also less robust than the client-server
applications that were being built several years ago. The J2EE environment is
evolving and changing so quickly that it is very difficult to keep up. Each
year, the current thinking about web architecture evolves considerably. Two
years ago, JavaServer Pages (JSPs) were the solution of choice, currently
JSP/Struts are being used and next year, JavaServer Faces (JSFs) are likely to
be the chosen alternative.
The industry standard, Enterprise JavaBeans (EJB), for middle
tier development has been completely revamped with EJB3. Web Services and BPEL
must now be taken into consideration along with a host of other new
technologies. There is no agreed-upon industry standard for the right way to
build J2EE-compliant web-based systems for no other reason than that these
standards take months, if not years, to evolve and there continue to be major
technology revisions every few months.
II. The Solution
One solution to this dilemma is to articulate the system in a
technology-independent fashion. Every enterprise-level system includes
thousands, if not tens of thousands of business rules. However, these rules
fall into a small number of categories. It is possible to create a code
generator to generate the appropriate code from these rule categories. The
generator itself only requires a few thousand lines of code. The advantage of
building systems using this approach is that when the technology changes, you
only need to refactor the generator code to accommodate the new architecture.
This is not a new idea. CASE tools from many years ago were
based on this same vision. So, why isn’t everyone using this approach? The
answer is that it is very difficult to design the repository so that it is
technology-independent, user-friendly, usable by normal developers, and
understandable to users. It must also be robust enough to handle a reasonable
number of applications and complex rule structures.
In practice, once the repository has been designed and built,
writing the generator code is a surprisingly simple exercise. It may require
weeks or even months to determine the user interface standards, appropriate
technological implementation (e.g. the appropriate Struts flow diagram to
generate). However, once these decisions have been made, building the code
generator requires much less effort than initially creating, let alone
maintaining, traditional applications. The reason for this is that the ratio of
generator code to generated code may easily be 100:1 or more. As an example, in
one project that the author worked on, the system generator required
approximately 1000 lines of code. This generator was used to generate two
versions of the system in both PL/SQL and Java, each of which contained 300,000
lines of code. In this one instance, it was possible to achieve a 600:1 payback
on generator/generated code.
A. The Taxonomy
The taxonomy for describing the repository-based solution is
as follows:
I. Logical Specification of a System
A. Object Rules
·
Structural
·
Process
·
Data Validation
B. User Interface (UI) Rules
1. Model
a. Structure
b.
Binding to objects
2.
View
a.
Structure
b.
Binding to model
c.
Logic
d.
Presentation
3. Controller
II. Physical Specification of a System
A. Persistence
Layer
1.
Objects
2. Code
B. Model
1.
Objects
2.
Code
C. View
1.
Objects
2.
Code
D. Controller
1.
Objects
2.
Code
B. Logical vs. Physical Specifications
Making the distinction between the logical and physical
portions of the solution should raise few objections, but it is surprising to
note how few product architectures (even ones with an expressed “business-rules
based” philosophy) embrace this dichotomy.
The idea is the system can be specified in an implementation-independent
way. Deciding what to do with this specification is then an independent
step. This approach can be summed up in
the motto: “The articulation of the rules is independent of the implementation
of the rules.”
Most products ignore this idea and straddle the fence. As an example, the Oracle Application Development
Framework (ADF) Business Components (BC) architecture in the JDeveloper product
includes some user-friendly screens that allow you to articulate quite complex
business rules. These rules are then
represented either as XML files that are directly referenced by Java classes at
runtime or are themselves code generators.
This architecture makes it very difficult for someone building in
In the case of JDeveloper, ignoring the distinction between the
logical and physical aspects of the system being built is appropriate. JDeveloper is an implementation tool. Its goal is to provide developers with quick
and efficient ways to implement an architectural vision. With business
rules-based products such as those mentioned above, this direct-to-code
approach is inappropriate. One of the
greatest advantages of a rules approach is that you are describing the system
from the user’s perspective. It ought to then be possible to implement that description
in a variety of different ways. As the technology
evolves, it ought to be very easy to refactor the rules to support new
technologies.
In the tools explicitly catering to the system architect,
this separation of logical and physical is implemented quite cleanly. Both Oracle Designer and
This division between the logical system specification and its
implementation is not without problems. Having
separate logical and physical layers requires that they be kept in synch. In systems that require maintaining two (or
more) models, it is nearly impossible to keep them synchronized. This problem
should be familiar to most database designers.
Anyone using a tool that generates a data structure (such as Oracle
Designer) is aware of the practical impossibility of keeping the model and
database in synch. With Designer, the
situation was more difficult since the tool supported both a logical ERD as
well as a loosely coupled physical data model which was used to generate the
actual physical database. Therefore with
Designer, there are three representations of the database. When changes are required or errors
discovered, they potentially must be made in all three places.
Using a waterfall methodology where the design progresses in
an orderly fashion from logical development to physical implementation, this type
of tool worked very well. However, once
the system was in place, it was a very difficult architecture to maintain over
time.
The problem arises from using the logical model to generate
the implementation model and then allowing independent manipulation of the
implementation model. There is nothing wrong with the idea of having both a
logical and physical model, but trying to maintain multiple models is usually
impractical.
The solution to the dilemma is to tightly couple the logical
and implementation models. Instead of having
independent logical and physical models, specify what is “logical”
(implementation-independent) in the logical model and only specify “additional”
(implementation-dependent) things in the implementation model. Only allow limited overriding of the
algorithm used to generate the physical model and keep track of what was
overridden so that element changes in the logical model can be updated in the
physical model. This tight coupling of the system layers is an important
concept to remember and enforce.
When logically specifying a system, the idea is to partition
rules into those about objects that will be true for any representation of
those objects and rules that are UI-dependent.
Few existing products divide the rules in this way.
A. Object Rules
Object-level rules are where most of the design of the system
takes place. This idea should be the core of our thinking about application
development. Traditionally business rules about the objects are not even
captured coherently let alone coded so they are clearly attached to the
objects.
Logically, object rules are not a difficult concept to grasp. For example, if lastName_tx is a required
attribute of the Employee class, then any user interface that supports inserting
or editing that object should properly enforce that rule. Therefore, it should not be incumbent upon
the system designer to specify that the attribute is required at the UI
level. All that should be necessary is
an indication that this text box is an editable representation of the attribute
so that the object level rules (length, required, textual validations)
apply.
The newer and more complex aspect to the concept of object
rules is that their inheritance should be automatic. In addition, whenever possible rules should
be specified at the object level and be inherited at the UI level.
Rules associated with objects usually comprise a large
portion of the total system rules. Many people think of object rules as only
contained in the data model. While it is true that object rules will define the
data structure of the database, these rules can specify much more than what is
contained in a traditional ERD. For example, the logical process flow for
handling an object such a purchase order can be defined at the object level. The
process should also be independent of any particular representation in the user
interface. Data validation rules such as “any contract actions should take
place between the start date and end date of the associated contract” should be
articulated with the object so that any representation would conform to the
rule.
B. User Interface (UI) Rules
If rules are placed at the object level, why are additional
rules needed at the user interface level? It is possible to generate an entire
default user interface based solely upon knowledge of the associated objects.
However, what is generated will not be particularly user-friendly. There are additional
rules that are concerned more with the needs of the user that are not properly
associated with system objects at all. For example, determining which
attributes will be displayed in what positions on the screen, what areas of the
screen are automatically populated when the screen opens, whether or not rules
are validated when tabbing out of
C. Where should the rules be defined?
This division between object rules and UI rules is not always
clear cut. Occasionally, there are rules encountered that could be placed in
either category. For example, in an address object with COUNTRY and POSTAL CODE
attributes, at the object level, the COUNTRY and POSTAL CODE should be
consistent. However, in practice, changing the COUNTRY from
If UI rules are attached to the objects themselves and
overridden in the representation of the object, full object-oriented (OO)
thinking must be used in designing the repository. This renders the repository
more difficult to use, especially for non-IT professionals. If a rule structure
is too complex for users to understand, there is little reason to include it in
the repository.
It is still a good idea to define rules that are universal
across all representations of an object at the object level. Only additional
UI-specific rules should be defined at the UI level. Most of the rules required
to define an application occur at the object level. In practice, the division
is approximately 80% object rules and 20% UI rules.
D. Object Rule Types
Object Rules can be subdivided into Structural, Process and
Data Validation rules. It is important
to remember that these rules by their nature do not divide into these three
classifications. These are three
different and arbitrary ways to describe object rules. For any given rule, it
is usually most convenient to articulate it using one particular mechanism, but
most rules can be articulated using more than one mechanism.
1. Structural Rules
Structural rules describe the static nature of the objects in
the system. What are the objects of
interest? What are the attributes associated with them? This is the kind of
information that is traditionally captured in ERDs although in recent years, UML
class diagrams have become more widely used for diagramming systems.
UML Class diagrams (with some extensions) are somewhat better
suited for data modeling than ERDs. ERD
proponents argue that UML is an implementation tool and that cannot be used for
logical modeling. UML proponents argue that ERDs are too limited and do not support
inheritance well enough. This debate is beyond the scope of this paper but the
choice of diagramming syntax is of far less importance than deciding what is to
be captured.
Data modeling has traditionally only been concerned with
capturing the information required to generate the tables, columns and
constraints for the DBMS. Structural
rules include a much broader range of information than that limited scope. Structural
rules should include the following areas not traditionally included in data
modeling:
·
Derived attributes
·
Objects defined using other objects (for example,
to generate database views)
·
Audit, security, and history requirements
·
Default object display
·
Triggering events based on Insert, Update, and Deletion
of objects or attributes
The idea is to partition all of the rules required to specify
a system, and not simply identify the rules necessary to generate the database.
Focusing on database generation rather than on the structure of the objects is
a primary reason for the limitation of CASE tools such as Oracle Designer. Rather than thinking about capturing rules of
a specific type (i.e. structural), CASE tools focused on the purpose (i.e.
generating a database), hence the tools never evolved to full system
specification tools.
For the structural rules area of the repository, imagine a
standard UML class diagram meta-model as shown in Figure 1. Of course the real
model would be more complex, but for the purposes of this paper, showing the
key classes is sufficient.

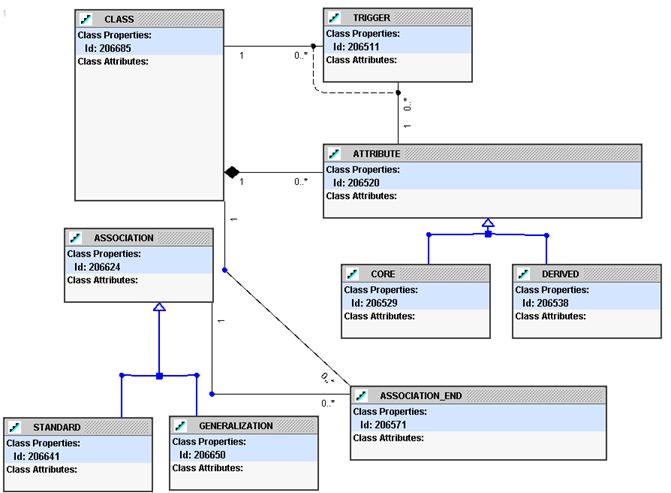

Figure 1: UML Class
Diagram Meta-Model
NOTE: The only part of the model that may seem odd is having “association
end” as its own class. This allows generalizations to have one head end class and
multiple end classes.
2. Process Rules
Process rules define the process flow of an object from one
state to another. A particular object
may have states associated with different aspects of the object. For example, a person may simultaneously have
a physical health as well as an economic health. One could define independent process flows
for each aspect.
Process rules should be described using some type of
flowchart or process flow rather than a declarative mechanism. There are simply too many rules associated
with an object to be able to manage without dividing the object flow into
states. If process rules are specified
using a declarative mechanism, you end up having thousands (or even tens of
thousands) of rules. These rules
interact, may cancel each other out, and are impossible to manage.
Traditional State Transition Engine (STE) diagrams or
flowcharts are similarly hard to manage.
You might remember university classes in programming where you were
forced to create flowcharts to document your programming assignments. You always wrote the code first and the
flowchart afterward. The flowchart for a simple 200-line program had 60-80
little boxes on it and the flowchart was harder to read than the program code
itself.
The solution to making an
The formal structure used is to add the idea of an “event” on
a state (similar to the idea of a database trigger on a table). When the event is triggered, actions can be
executed. Rules can be attached to an
event to prevent it from occurring (for example security to prevent an object
from being opened).
States are associated with a class of object. Process flows are not independent
things. The process flow defines the
allowable states for a particular class of objects.
The high-level process flow repository is shown in Figure 2.

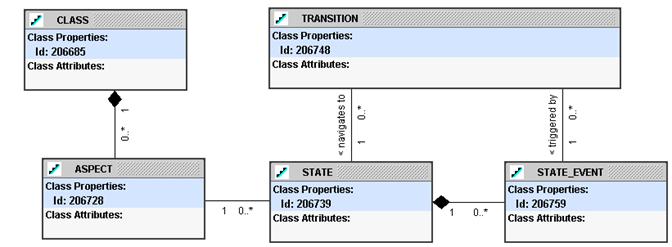

Figure 2: Process Flow
Repository
3. Data Validation Rules
Data validation is a complex topic in its own right. A system can easily have hundreds of data
validation rules. These rules may always need to be enforced or only
contingently enforced based upon some condition or the state of the object. The
rules may only require looking at the object being validated or accessing
objects in other classes. Rule failure may only trigger a user warning or may
prevent data modification entirely.
The difficulty is in coming up with a grammar to help specify
the rules. Natural language is not
precise enough and code is too hard to read.
The solution is to place the rules at the object level but support an Object
Constraint Language (OCL)-like syntax that allows you to validate across
classes. For example, the rule to say
that a department must have at least one employee (in the standard emp/dept
1-many model) would be written as:
:_child.emp.count >= 1
This grammar can be easily extended to support 99% of all
rules encountered.
Validation rules are often only contingently required. Therefore, these rules can be invoked at the
object state level and may be contingently executed based upon some condition. The
high level model to support the data validation repository is shown in Figure
3.

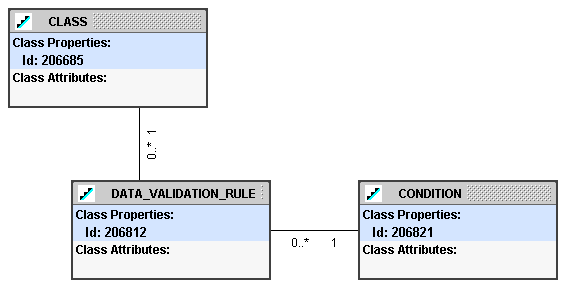

Figure 3: Data Validation
Repository Model
E. User Interface (UI) Rule Types
Once the object rules are collected, there are some additional
rules required to specify the UI. For
the purposes of this discussion, the UI rules will be kept to a minimum so that
rules described at the object level will not be repeated at the UI level.
The model-view-controller (MVC) pattern architecture itself will
not be discussed here nor will the decision to use it be defended. However, the author’s perspective on MVC may
be slightly different than the industry standard in that it is viewed as a
logical design pattern, and not simply a way to write code. The goal here is to
define the application independent of any technology or implementation
considerations.
1. Model Layer
The model portion of the logical UI rules is not difficult to
specify. There is already so much
information at the object level that little extra information is required at
the UI level. Classes, attributes and
associations have already been defined at the object level. As a result, the only requirement at the UI
level is to select a subset of objects (classes, attributes, associations) from
the object level for use in the UI specification. This approach runs counter to
the way in which most systems are built.
Most tools specializing in model development support very sophisticated
object specification in the model portion of the UI. This approach does not preclude a “thick” UI
model level for implementation; it merely implies that the structure of the UI
model should properly be defined at the object-level.
Using this approach means that the structural rules at the
object level will be quite sophisticated, requiring not only standard views,
but also views that are dynamically altered or generated based on the values of
some passed parameters. All that remains for the UI model specification is to
point to existing structural object specifications. The model to support this is shown in Figure
4.

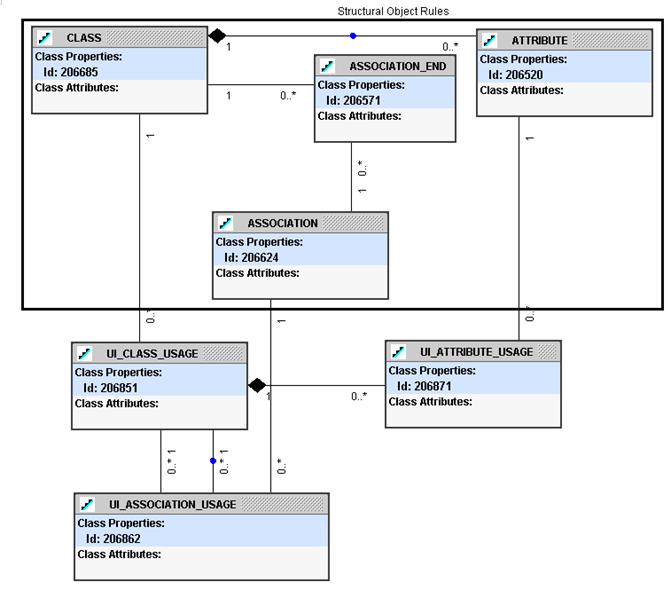

Figure 4: UI Model
Specification
2. View Layer
The rules in the view layer of the logical UI are themselves
divided into structural (what are the elements and how are they grouped),
logical (what happens when a screen opens, or a button is pressed), and
presentation (how and where the elements are displayed).
The view layer structural rules are very simple. They define the UI elements (fields, buttons,
etc.) and how they are grouped and bound to the UI model.
On the other hand, the view layer logical rules are quite
complex. A full Event-Condition-Action (

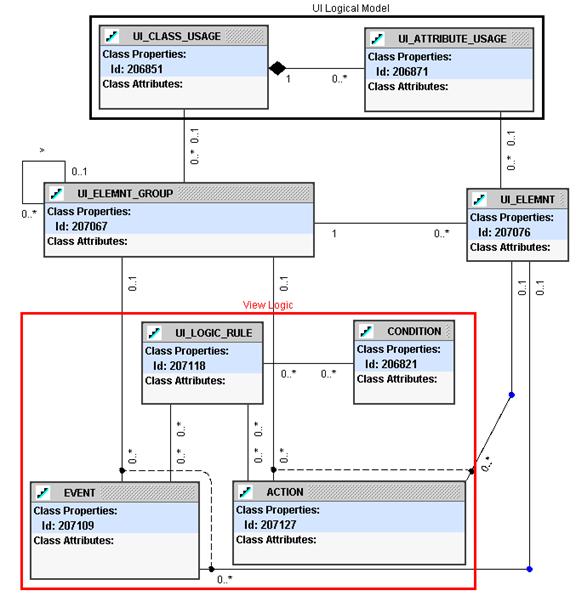

Figure 5:
Presentation rules are simply attributes of UI Element Group
and UI Element. The tricky part here is
that different products use very different methods to describe layout
presentation. The Oracle Developer tool used X and Y position, whereas HTML
uses tags that automatically position themselves on the screen. Trying to come
up with a technology-independent way to describe layout is not a problem that is
currently well under control.
3. Controller Layer
The real strength of the MVC design pattern is the Controller
layer. This layer can be partitioned
into rules controlling screen navigation and what happens during these screen
transitions. The Struts controller should not be used to logically define
rules. This is too restrictive an
implementation and would force a redesign if/when JavaServer Faces become the
standard. The Controller layer is a natural place for using the same type of
By using a technology-independent way of describing page flow,
you can generate the system to Struts, JSFs, or any other platform.
4. UI Shortcuts
There are standard UI structures that you should not have to
build over and over again. You can define system elements such as browse screens
that only require
For example, in the browse screen, the only elements that
must be specified are:
·
Fields that you want to query by (and how they
appear)
·
Fields in the display block (and how they will
appear)
The rest is automatic. This approach allows you to build the
user interface very quickly. You simply specify the browse screen for a
particular class, point and click the desired query by attributes and display
and out pops the application.
The model for specifying a browse screen is shown in Figure
6.

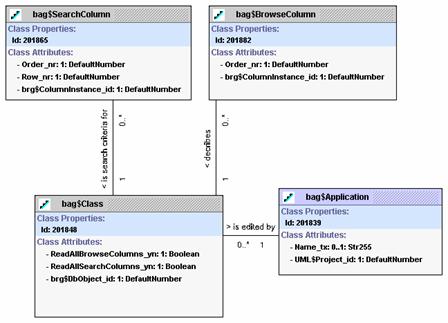

Figure 6: Browse screen
model
As shown in Figure 6, the repository is very simple. Since you know the object class on which to
base the browse screen, all that is left is to specify
IV. Physical Specification of a System
Once a system has been logically specified, you need to
specify the physical structure of the generated code. This can be done using a
standard meta-model that conforms to the way in which the system will be built. The appropriate model will vary depending upon
the technology. (That discussion is
beyond the scope of this paper.)
Generated elements will be linked to their generating
counterparts. It is good design practice
to limit how much overriding of generated elements will be allowed. Allowing developers to override table and
column names so that they are different from class and attribute names would
make the object structural class diagram useless and should be avoided.
Most of the work of generating the final system which
involves designing the repository and writing the generators is not difficult. The
hard part is deciding on the appropriate UI standards and the best way to build
the generated system. There are many decisions
to make. The following sections describe some of the most important ones to
consider.
A. Use a Thick Database Approach
The author prefers to keep the applications as “thin” as
possible and generate as much as possible in the database. This means generating
separate views for each screen and placing code in the database whenever
possible.
No object rules will ever be implemented outside of the
database. Structural rules generate to tables, views (perhaps with INSTEAD OF
triggers) and packages. Even “getters”
and “setters” that OO developers might want to exploit are generated as
packages. Process logic is generated as
PL/SQL packages and dynamic views.
All UI logic is controlled within the database. The
application will notify the database that an event has occurred (e.g. a button
is pressed) and the database will return a list of actions for the application
to execute.
Even browse screens will have query criteria based on an INSTEAD
OF trigger view. Updating the view will
automatically rebuild an object collection (using the PL/SQL in the INSTEAD OF
trigger) that will be returned to the application containing what is to be
displayed.
Using a thick database/thin application approach means that
moving to a different UI architecture (e.g. JSP/Struts to JavaServer Faces) will
not require rewriting a large portion of the generators.
B. Use ADF BC
Usage of Oracle’s Application Development Framework -
Business Components (
C. Limit the UI Design Options
Set your UI standard and stick to it. Do not allow developers more than a small
handful of options when specifying the UI.
D. Use JSP/Struts
For most applications, client/server architecture is no
longer necessary. JavaServer Faces are
not ready for prime time. Using the
industry standard JSP/Struts provides the robustness and capabilities necessary
to build a production system.
E. Avoid Post-Generation Modification
Make your architecture rich enough so that you do not need to
modify the generated applications.
V. Overview of the Generated Application
The generated application consists of the following parts:
·
one user login page
·
one main menu page
·
a browse page for each class in the application
·
an edit page for each class in the application
·
a State Transition Engine (
On the Login page, the user name and passwords are defined in
a separate table. The generated applications verify the login information using
these definitions.
The main menu page contains links to the browse page of each
class involved in the application.

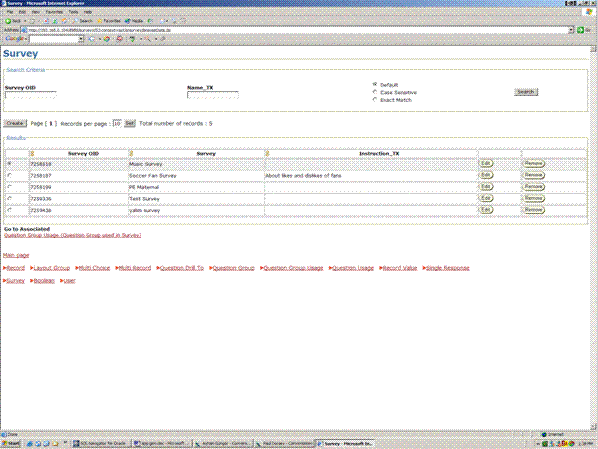

An example of a browse page is shown in Figure 7.
Figure 7: Sample Browse
Page
The Browse page consists of four sections:
1. Search
Criteria: This section includes search fields that are generated according to
the domain of the column with which they are associated. For example, Value
Lists are generated as combo boxes.
2. Results:
This section displays the query results. It also includes a navigation bar to
quickly locate the desired rows.
3. Associations:
This section shows links to the master and detail classes. It is generated
using the associations specified in the UML Data Model. For example, in a standard Department/Employees
application, there would be an Emp link in the Dept browse screen. Clicking this
link brings you to the Emp browse screen and only shows the employees associated
with the active Department in the Dept browse screen.
4. Menu:
This section includes links to all classes in the application.

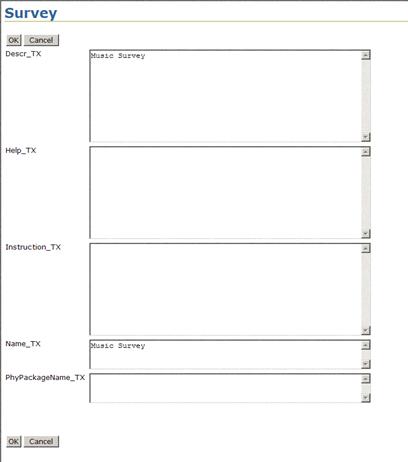

A sample Edit screen is shown in Figure 8.
Figure 8: Sample Edit
Screen
Fields on the Edit screen appear or disappear depending upon
the security settings of the user who is logged in. The fields can be editable,
display-only or not show at all. The size of the fields is based on the domain
settings of the associated column in the object model.
A. The Generator
Once the logical application is specified, the user calls a
database procedure that starts the application generation process.
The generator is written in PL/SQL. It consists of about
18,000 lines of code. Its output is a JDeveloper workspace folder in the
operating system. Once the generation is complete, the generated workspace is
zipped and the user downloads the zip file onto his/her local machine. At this
point the workspace is ready to use.
The generated workspace uses a small custom tag library
(paging functionality used in the browse page) and a code library (for security).
B. The Generated Application
The generated application is a standard JSP/Struts
application based on

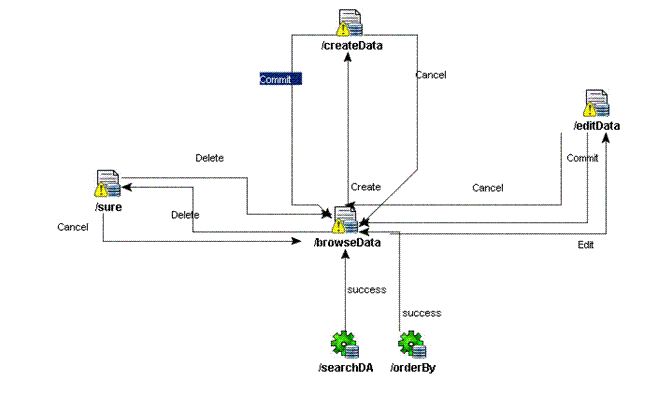

Figure 9: Sample Struts
Page Flow Diagram
The generated classes depend upon the function
required. As an example, a generated
search class as used in the Browse page is described here.
Search Functionality
This is integrated with the Search section in the Browse
screen. The search section consists of fields (Search Elements) that are used
to enter search criteria, a radio button for search method (Case sensitive,
Exact match, Default) and a Search button. When the button is pressed, the
SearchDA data action executes. The SearchDA is coupled with the corresponding
doSearch method in the application module using the “published function” method.
This coupling is done in the Struts-config.xml file.
The SearchDA passes the values (Search Elements) entered in
the Search screen to the application module. The application module calls the
corresponding search method in the generated Java Class. The search method
processes the search elements and builds a “Search Criteria” object. A Search Criteria object consists of search
elements which are used to build the WHERE clause and a View Object instance to
apply the WHERE clause. The search Criteria object is then processed. During this
processing, the WHERE clause string is constructed. Each Search Element is
analyzed and, depending on the type of the column represented, the appropriate
formatting is applied to the WHERE clause.
The WHERE clause is applied to the View Object and the view
object query is executed returning the resulting rows of the search. At this
point, the SearchDA data action completes and the Browse screen displays the
results.
The following is an example of the generated code for the
class called SrSurvey and the Struts Config. Xml tags:
<action
path="/searchDA" className="oracle.adf.controller.struts.actions.DataActionMapping"
type="view.SrSurveySearchDAAction" name="DataForm">
<set-property property="modelReference"
value="srsurvey_browseDataUIModel"/>
<set-property property="methodName"
value="srsurvey_browseDataUIModel.searchSrSurvey"/>
<set-property property="resultLocation"
value="${requestScope.methodResult}"/>
<set-property property="paramNames[0]"
value="${param.fSrSurvey_SrSurveyOid}"/>
<set-property property="paramNames[1]" value="${param.fSrSurvey_NameTx}"/>
<set-property property="paramNames[2]"
value="${param.fSrSurvey_Case}"/>
<set-property property="numParams" value="3"/>
<forward
name="success" path="/browseData.do"/>
</action>
Binding in the UI Model:
<DCControl
id="searchSrSurvey"
SubType="DCMethodAction"
Action="999"
RequiresUpdateModel="false"
DataControl="AppModuleDataControl"
InstanceName="AppModuleDataControl.dataProvider"
MethodName="searchSrSurvey"
ReturnName="AppModuleDataControl.methodResults.AppModuleDataControl_dataProvider_searchSrSurvey_result"
>
<Contents>
<NamedData
NDName="Arg0"
NDType="java.lang.String"
NDOption="2"
NDValue="%null%" >
</NamedData>
<NamedData
NDName="Arg1"
NDType="java.lang.String"
NDOption="2"
NDValue="%null%" >
</NamedData>
<NamedData
NDName="Arg2"
NDType="java.lang.String"
NDOption="2"
NDValue="%null%" >
</NamedData>
</Contents>
</DCControl>
Exposed method in the application module:
public void
orderSrSurvey(String column, String type) {
Object _ret =
this.riInvokeExportedMethod(this, "orderSrSurvey", new String[]
{"java.lang.String", "java.lang.String"}, new Object[]
{column, type});
return;
}
Method in the application module:
SrSurveyBrim
SrSurveyb = new SrSurveyBrim();
public void
searchSrSurvey( String SrSurveyOid, String NameTx, String searchCase) {
SrSurveyb.doSearch(getSrSurveyView1(), SrSurveyOid, NameTx, searchCase);
}
The Generated Java Class for Class SrSurvey
package com.dulcian.brim.bag;
import oracle.jbo.ViewObject;
public class SrSurveyBrim extends ClassBrim {
public
SrSurveyBrim() {
}
SearchCriteria sc
= new SearchCriteria();
public void
doSearch(ViewObject vo, String
SrSurveyOid, String NameTx, String searchCase) {
sc.setCase(searchCase);
sc.setVO(vo);
sc.addElement("SR_SURVEY_OID", SrSurveyOid, null, OIDCOLUMN,
NUMBER, null);
sc.addElement("NAME_TX", NameTx, null, REGULARATTRIBUTE,
VARCHAR2, SIMPLE);
super.doSearch(sc);
}
}
Java Class ClassBrim.java. This class is the super class
of all generated classes. It contains the search code that is shared by all of
them.
package com.dulcian.brim.bag;
import java.util.Iterator;
import oracle.jbo.ViewObject;
public class ClassBrim {
public
ClassBrim() {
}
public final
String NUMBER = "NUMBER";
public final
String DATE = "DATE";
public final
String VARCHAR2 = "VARCHAR2";
public final
String OIDCOLUMN = "OIDColumn";
public final
String MASTERDETAILRELATIONSHIP = "MasterDetailRelationship";
public final
String ASSOCIATIONCLASSEND = "AssociationClassEnd";
public final
String ASSOCIATIONCLASSHEAD = "AssociationClassHead";
public final
public final
String BESTATUS = "BEStatus";
public final
String REGULARATTRIBUTE = "RegularAttribute";
public final
String DERIVEDATTRIBUTE = "DerivedAttribute";
public final
String STARTDATE = "StartDate";
public final
String ENDDATE = "EndDate";
public final
String EXPIRATIONDATE = "ExpirationDate";
public final
String CLASSINDICATOR = "ClassIndicator";
public final
String ACTIVEINDICATOR = "ActiveIndicator";
public final
String VALUELIST = "Value List";
public final
String SIMPLE = "Simple";
public void
doSearch(SearchCriteria searchCriteria) {
String
dateFormat = "MM/DD/YYYY";
String
searchCase = searchCriteria.getCase();
ViewObject vo =
searchCriteria.getVO();
String query =
"";
Iterator iter =
searchCriteria.getSearchCriteriaElements();
for(;
iter.hasNext();) {
SearchCriteriaElement sce = (SearchCriteriaElement) iter.next();
if(sce.columnType
!= null && (sce.columnType.equals(OIDCOLUMN) || sce.columnType.
equals(MASTERDETAILRELATIONSHIP) ||
sce.columnType.equals(ASSOCIATIONCLASSEND)
||
sce.columnType.equals(ASSOCIATIONCLASSHEAD) || sce.columnType.equals(STATE)
||
sce.columnType.equals(CLASSINDICATOR))) {
if
(sce.value1 != null && sce.value1.equals("NO_VALUE"))
query +=
sce.columnName + " IS NULL AND ";
else
if(sce.value1 != null && sce.value1.length() > 0)
query += sce.columnName
+ " = " + sce.value1 + " AND ";
} else
if(sce.domainType != null && sce.domainType.equals(VALUELIST)) {
if(sce.value1 != null && sce.value1.length() > 0 &&
!sce.value1.equals("-1"))
query +=
sce.columnName + " = '" + sce.value1 + "' AND ";
} else
if(sce.dataType != null && sce.dataType.equals(VARCHAR2)) {
if(sce.value1 != null && sce.value1.length() > 0) {
if(searchCase.equals("0"))
query
+= "UPPER(" + sce.columnName + ") LIKE UPPER('" +
sce.value1 + "%') AND ";
else
if(searchCase.equals("1"))
query
+= sce.columnName + " LIKE '" + sce.value1 + "%' AND ";
else
if(searchCase.equals("2"))
query
+= sce.columnName + " = '" + sce.value1 + "' AND ";
}
} else
if(sce.dataType != null && sce.dataType.equals(NUMBER)) {
if(sce.value1 != null && sce.value1.length() > 0) {
if(sce.value2 != null && sce.value2.length() > 0)
query
+= sce.columnName + " BETWEEN " + sce.value1 + " AND " +
sce.value2 + " AND ";
else
query
+= sce.columnName + " = " + sce.value1 + " AND ";
} else {
if(sce.value2 != null && sce.value2.length() > 0)
query
+= sce.columnName + " = " + sce.value2 + " AND ";
}
} else
if(sce.dataType != null && sce.dataType.equals(DATE)) {
if(sce.value1 != null && sce.value1.length() > 0) {
if(sce.value2 != null && sce.value2.length() > 0)
query
+= sce.columnName + " BETWEEN to_date('" + sce.value1 + "',
'" + dateFormat
+ "') AND to_date('" + sce.value2 + "', '" +
dateFormat + "') AND ";
else
query
+= sce.columnName + " = to_date('" + sce.value1 + "', '" +
dateFormat + "') AND ";
} else {
if(sce.value2 != null && sce.value2.length() > 0)
query
+= sce.columnName + " = to_date('" + sce.value2 + "', '" +
dateFormat + "') AND ";
}
}
}
System.out.println(query);
if(!query.equals(""))
vo.setWhereClause(query.substring(0, query.length()-5));
else
vo.setWhereClause(null);
vo.setOrderByClause(null);
vo.executeQuery();
searchCriteria.getSearchCriteriaHashtable().clear();
}
}
Conclusions
It is possible to create a complete architecture to describe
and generate
About the Authors
Dr.
Yalim Gerger is the founder and president of Gerger
Consulting, representing Dulcian, Inc. in
