using one or more of the UML tools. The process of translating these diagrams or UML documents into an actual system is the task for the IT professional.

Second, the UML can be used as a graphical front-end for a code or other system element generator tool. The tool’s designers can explicitly define how each UML element will be translated into code and automatically generate code directly from the diagrams.

JDeveloper has four such translation mechanisms. One is based on a UML Activity Diagrammer which allows you to make web pages interact. The remaining three are associated with the Class Modeler and perform the following functions:

· Generate BC4J entities and associations

· Generate UML classes

· Generate physical tables in the database

Objects within these three contexts have very different meanings and should not be regarded as the same constructs; therefore, each will be discussed separately. There is not strong support for a logical diagram in JDeveloper as there is in Oracle Designer. When you make modifications to generated classes in diagrams, you are simultaneously modifying the code.

Overview of the JDeveloper 9i Class Modeler

It is possible to create both Class Diagrams and Activity Diagrams using the JDeveloper Class Modeler. The remainder of this paper will discuss how to use the Class Modeler to create UML class diagrams.

The Component Palette

When you create a UML class diagram, the Class Diagram Component Palette shown in Figure 1 is accessible for adding elements to the diagram. All diagram elements can be edited by double clicking on them

Figure 1: JDeveloper 9i Component Palette

Icon functionality is as follows (moving from left to right):

· The first icon is for the pointer, which is used to select items, as in most applications.

· The Java Class icon allows you to add a Java class to the diagram by clicking it and clicking on the diagram. Java Classes are shown in pale yellow.

· The Interface icon allows you to add an interface to the diagram. By default, interfaces are shown in light bluish purple.

· The Entity Object icon allows you to add an entity object to the diagram. By default, entity objects are shown in gray.

· The Domain icon allows you to add a domain to the diagram. By default, domains are shown in light pink.

· The Package icon allows you to add a package to the diagram. Packages are shown as a folder-shaped object in light orange by default.

· The Association 1 * icon allows you to associate two objects with a 1-to-many relationship.

· The Directed Association 1 to 1 icon allows you to associate two objects with a 1-1 relationship.

· The Directed Association 1 to * icon allows you to associate two objects with a 1-many relationship.

· The Directed Strong Aggregation icon indicates that the class at the other end of the association is a part of and is owned by the class identified by this association.

· The Generalization icon (solid line arrow with triangle head) indicates inheritance between the connected elements. The arrow head on the generalization line points toward the generalization element and away from the specialization element. Place the generalized element above its specialized element on the diagram.

· The Realization icon (dotted line arrow with triangle head) is used to implement relationships in the UML to specify where a (concrete) modeled Java class is used to implement a modeled Java interface.

· The Dependency icon (dotted line arrow with regular arrowhead) is used to indicate that changes to one element will affect the dependent element. This has no automatic effect on objects.

· The Note icon places a bright yellow area on the diagram to allow you to add any information about the diagram to be viewed when the diagram is opened. This has no automatic effect on objects.

· The Constraint icon allows you to add a restriction to a class or an association. Constraints are shown in gray with a turned down corner. This has no automatic effect on objects.

· The Attachment icon allows you to attach a note or constraint to another diagram element. This has no automatic effect on objects.

Useful Techniques for Adding Elements to a Diagram

Entity objects can be added to a class diagram using one of four methods:

1. Drag the object directly from the Navigator onto the Class Modeler diagram. This is the simplest method.

2. You can create the entity object as you normally would in the Navigator using one of the BC4J Wizards and then selecting Add to Diagram from the right click menu on the class diagram. Use the Add to Diagram dialog to expand the Business Components node and select the appropriate package. Expand the package node to select the desired element(s) (association or entity).

3. You can expand the Connections, Database and Tables nodes respectively in the Navigator and select and drag the desired tables onto the diagram.

Note about selecting multiple items:

It is possible to select multiple items using the Ctrl key but not the shift key. You must select the first item without holding down the Ctrl key. Then hold down the Ctrl key and select additional items. Do not let go of the mouse button or the Ctrl key after selecting the last item. Drag the cursor over to the diagram and release the mouse button. The mouse cursor will show a small rectangle or you may see a larger gray rectangle on the diagram temporarily. Be patient. It may take some time for the items to appear. If you release either the mouse button or Ctrl key too soon, the product will freeze. Therefore, it is suggested that you only select one item at a time.

4. You can use the Component Palette. Select the Entity Object icon and click the diagram where you want it to appear. Doubleclick the entity object to open the Table and Entity Object Dialog. Create the entity by entering the information in the re-entrant Entity Object dialog. You can attach to an existing table using the wizard, or you can fully specify an entity independent of the database and ultimately use the entity object to generate the physical table. However, the interface to support this is relatively rudimentary and not as convenient as the traditional way of creating tables.

5. To add an elbow (equivalent to doglegs in Designer) in a diagram, hold down the Shift key and click the line to be edited. Drag the line to the desired position. To remove the elbow, hold down the Shift key and drag the line back to the straight position.

Class Modeler Window Buttons

There are five tiny icons at the bottom of the diagram window as shown in Figure 2.

Figure 2: Class Modeler Diagram Tools

· Moving from left to right, the icon functionality is as follows:

· Zoom In (+ sign): Enlarges view of diagram

· Zoom Out (- sign): Allows you to see more of the diagram on the screen

· Zoom to Selected: Fills the modeler window with the selected object

· Fit to Window: Fits the entire diagram in the modeler window

· Normal Size: Returns the diagram to its original size for editing

The entire model window can be resized as you add elements.

Class Modeler Menu

There are several categories of selections you can make from the Model menu when working with class diagrams.

· The look of the model can be adjusted using the Align, Distribute or Straighten Lines options. The Straighten Lines option is particularly useful with complex models containing many objects and associations between them.

· Bring to Front, Send to Back and Minimize Pages provide the standard Windows functionality for these operations.

· The Visual Properties selection accesses the Visual Properties dialog, which allows you to specify certain visual display preferences for the diagram, enable the Automatically Resize Shapes feature, and set the diagram Grid Size. More information about the visual properties can be obtained by clicking the help button on this dialog.

· Zoom controls what portion of the diagram is visible on the screen at a given time.

· Node View allows you to select between Iconic and Symbolic format for your diagram elements.

· Go to Source is used to access the Java code editor for the diagram elements

· Drill Down and Drill Up functionality is used either for packages on a Class Diagram or with Activity Diagrams.

· Add to Diagram allows you to access the Business Components, Library Elements and Model Elements nodes to find the desired objects to add to your diagram.

· Show gives you two options. Show Related Elements adds related elements and draws arrows from your existing Java classes in the diagram. Show Implementation Files creates a modeled Java class from the .java file that implements the entity object.

· Generate has a number of options:

o Java – Generates the Java code for the diagram element

o Java for Diagram – Generates the Java code for all elements in the diagram simultaneously

o Automatically Generate Java – When this option is checked, elements are automatically generated as soon as they are added to the diagram.

o Business Components – Generates a selected business component

o Business Components for Diagram – Generates all of the business components in the active diagram

o Database Objects – Generates the Java code for the selected database object in the active diagram

o Database Objects for Diagram – Generates the Java code for all database objects in the active diagram

o E-Business Integration – Used only for the Activity Modeler to visualize and generate the integration between E-Business applications either within an Intranet system or over the Internet.

· Transform to Business Components (see Using the Class Modeler as an Analysis Tool Section below for explanation)

· Publish Diagram - You can export any diagram created in the Class Modeler to either a .jpg or .svg file using either the menu selection Model|Publish Diagram or clicking on a blank space in the diagram and selecting Publish Diagram… from the right-click menu.

Using the Class Modeler as an Analysis Tool

Java classes can effectively be used to do logical modeling. Until you generate the class, there is no associated code so you can quickly and easily create classes and interfaces using the Component Palette and manipulate them within the model. Later, if you choose to implement the model, you can easily generate the Java classes.

Java classes can also be used to build BC4J entities in the Class Modeler. You can do this by creating a Java class and adding the appropriate entities and associations. When the logical model is correct, you can multi-select all of the objects for which you want to create corresponding objects in the BC4J layer. Each Java class will create a BC4J entity. Each class association will create a Java association. Select the desired objects on the diagram and select Transform to Business Components from the right-click menu. You will have three alternatives:

· Model only – creates the BC4J entity and associations but does not place them on the diagram. They will appear in the Navigator

· Same Diagram – creates the BC4J objects and presents them on the same diagram

· New Diagram – creates the objects and places them by default on a new UML Class Diagram

Note: The menu option name “Transform to Business Components” is misleading since you are not changing the existing Java classes in to BC4J components but actually creating new entity objects and BC4J associations.

Class Modeler for BC4J

A BC4J project is really composed of two different primary areas: entities and their associations as well as views and view links. The JDeveloper Class Modeler will only support entities and associations.

To create a BC4J diagram, you should first have a BC4J project. Since the diagram exists within a BC4J project, the only objects you will create are entity objects and associations.

When you create a UML Class Diagram, it must be in a package.

Tip: Place your UML class diagrams in their own packages. If you use an existing package, JDeveloper will place the package in two places in the Navigator. As of this writing, elements that are added to the diagram will appear under both packages with slightly different functionality.

Once you have generated the class, any modifications to the diagram component immediately update the associated Java classes. You do not need to regenerate a BC4J entity or association.

When you create a BC4J element in a diagram, JDeveloper automatically creates the associated BC4J object and modifications to the diagram elements are also made to the BC4J elements. However, the BC4J Java classes are not automatically created if you create the BC4J element from the Component Palette. If you use this method, in order to create the associated Java class, you must select Generate…Business Components from the right-click menu.

BC4J classes associated with generated Java classes will be flagged with a rectangular icon in the upper left-hand corner of the class in the model window.

Class Modeler Window for BC4J Diagrams

In the Class Modeler window, you can view each object in either iconic or symbolic format by clicking the object and using the right-click menu. Iconic format is more aesthetically pleasing but does not show any information beyond the class name.

Symbolic format includes the attributes, methods, keywords and constraints associated with the class. What appears with the class can be manipulated using the Visual Properties window.

Color and font preferences can also be set using the Visual Properties dialog. Just as in the BC4J Class Modeler, you can view objects in either iconic or symbolic format.

In a BC4J diagram, it is possible to add BC4J Java classes to the diagram. Also, if you have a project with both BC4J components and other Java classes, these can be modeled on the same diagram. There are some applications where you may choose to have Java classes and BC4J components in the same project. The reason that this capability exists within JDeveloper is because developers on the Oracle Applications team wanted to take advantage of this functionality. A full discussion of this topic is beyond the scope of this paper.

BC4J Associations

BC4J associations (between BC4J entities) can be created in UML diagrams in the same ways as adding BC4J classes described above. As previously mentioned, selecting Add to Diagram from the entity right-click menu is one method. If you add entities to the diagram that are already associated, the associations will not automatically be added.

If you drag tables from the database that are already associated because of existing foreign key constraints, the association will automatically be copied onto the diagram. You can also use one of the four association type icons on the Component Palette to connect two BC4J entities on the class diagram.

Once the association is represented on the diagram, you can double click it to open the tabbed Association dialog and specify or modify the association. If you create the associations between BC4J entity classes using the Component Palette, JDeveloper creates a BC4J association between the two classes. The name of the association in the diagram acts as the name of the BC4J association.

(Association Roles

The association roles (words at the ends of the association line) act as the names of the accessor if you choose to expose them. Accessors are exposed by using a directed association. You can modify which accessors are exposed (show the association as directed) by double clicking the association line in the diagram to access the Association dialog. On the Association Properties tab, you can use the Expose Accessor checkboxes to make the association directed.

Composition, Generalization and Realization

You may choose to use composition rather than simple association to improve the readability of your diagram but the only effect this has is that you can implement Cascade Delete, which is not available otherwise.

You are allowed to place generalizations or dependencies between BC4J classes but this will not have any effect on the BC4J objects. In particular, generalizations between BC4J entities make no logical sense and should not be used. The dependency line may be useful for documentation purposes. JDeveloper will not allow you to place realizations between BC4J entity classes.

Notes and Constraints

You can also add notes and constraints to your model using the icons on the Component Palette. Constraints may be attached to other objects using a dependency line. These are purely descriptive elements that have no impact on the logical components.

Class Modeler for Java Elements

The JDeveloper 9i Class Modeler is a Java class modeler. In addition to modeling BC4J classes, it can also be used to manage Java classes, packages and interfaces. When using the Class Modeler on BC4J objects, there are various things you can do in UML some of which have an effect on your code while others do not.

Java Classes

You can actually create a Java class on the diagram using the Class Modeler. However, this does not immediately create the Java class itself. It only creates a modeled representation of the Java class. Just as with the BC4J entity class, it will appear under the package where the diagram resides.

The underlying Java class code is not created until you explicitly generate the UML diagram Java class. However, once generated, the diagram and the class are then linked. Any modifications to the diagram will immediately be reflected in the Java code.

When you create a Java class using the Modeler, the class is simply created as a public class (two lines of code) and placed in the appropriate package. Once the class is created, it can be manipulated like any other class using the Class Editor accessed by clicking on a class in the diagram and selecting Class Editor from the right-click menu.

Even though you can create classes directly in the Modeler, it is usually better to create them in the Navigator by selecting new class from the right-click menu and using the New Class dialog to specify the Name, Package and other elements. Once created this way, it can easily be added to the diagram by selecting Add to Diagram from the right-click menu and the desired class from the Model Elements node.

Note: If you select a class to add to the diagram that is already in the diagram, it will not be added. Each class can only be represented once in the diagram.

There are two methods for adding classes to a diagram. First, they can be created using the Component Palette. Second, if the class already exists in your project, you can select the class in the Navigator, click the desired diagram area and select Add to Diagram from the right-click menu. You can then use the Add to Diagram Dialog to make additional specifications.

Note: Classes, packages and interfaces found under the Model Elements node in the Navigator can be added to the diagram using the Add to Diagram dialog.

If you add a class that is an extension of another class on the diagram, the generalization line connecting the two classes will automatically be added.

Interfaces

You can also create Java interfaces using the Modeler. You can create a stub for an interface by stereotyping a class as an interface and then generating the Java as a second step. Interestingly, there is no obvious way other than this to create an interface in JDeveloper. This can only be done using the Modeler. In the Navigator, the easiest way to create an interface is to create a Java class and manually change the code to make it into an interface.

Realizations

Realizations connect Java classes to interfaces and are shown as a triangle with a dotted line. The triangle points to the interface. The effect on the code is that, in the associated Java class, it modifies the Java class so that it implements the interface.

Note: If you convert the Java interface to a class, the realization line will automatically change to a generalization. The underlying code will be modified to show that the first class extends the second class. Similarly, if you convert a Java class to an interface, the generalization line will be changed to a realization line with the appropriate code modifications.

Packages

You can also create packages using the Component Palette of the Class Modeler. Packages are created immediately when the diagram element is created and do not need to be generated. Packages are usually created when you create other objects such as workspaces, projects and classes. As with other elements, packages can be added directly to the diagram by selecting Add to Diagram from the diagram right-click menu and selecting the desired package from the list. There is no node view for packages. However, you can change the colors and fonts using the Visual Properties dialog.

When classes and packages are added to the diagram, there is no visual representation showing what classes belong to which packages. Java classes do not show up in the Navigator to indicate the package in which they reside. However, there is nothing to prevent you from using the dependency arrow in the diagram to represent that inclusion. Drawing a dependency arrow between the class and the package does not have any impact on the class or the package.

Tip: There are a number of diagramming operations you can use that have no affect on your application but can be used purely for documentation purposes to make the diagram clearer. If you are unsure of whether your diagram change has impacted your code, before making the change, first Save All so that all model and BC4J elements are not in italics in the Navigator. Make the change to the diagram and look to see if any elements in the Navigator other than the affected diagram elements appear in italics, indicating that they have been modified.

Packages and Class Modeler Diagrams

Packages are logical collections of elements that usually appear in the Navigator with their associated objects. For example, when you create a BC4J project, the BC4J elements appear within the BC4J package node. However, in an application project, typically you do not see the package. When you create a UML diagram in either a BC4J or application project, JDeveloper displays the name of the diagram under the node for the package in which the diagram resides. When BC4J elements are displayed in the Navigator, they are shown within a package with a special icon If you build a UML diagram in a project without BC4J components, the package will be shown with the regular package icon

You may therefore have two package nodes referencing the same package. These packages may also show the classes that belong to them. For example, in a BC4J project, using package “mypackage1”, only a single package will be shown in the project. If a UML diagram is created and placed in the same package, two package nodes will be displayed, one for the actual BC4J elements and a second package for the diagram as shown in Figure 3:

Figure 3: JDeveloper Navigator showing dual package structure

As you add BC4J elements to the diagram, the associated BC4J classes will be shown as associated sub-elements to the package. This has no additional meaning. The classes were already sub-elements in the BC4J package. Even if you remove the diagram elements, the classes will still appear in the Navigator under the regular package node. You will see this package node within the project even if the diagram itself is deleted. This extra node will not affect your code and can be ignored.

In your application project, you will not see any package node. If you create a UML diagram, you will see a package node that contains the UML diagram. As you add classes, those classes will appear under the corresponding package nodes. If you select a diagram element and select Remove from Diagram from the right-click menu, the item will only be deleted in the diagram and not in the Navigator. You must select Delete from Model in order to remove the element from package node in the Navigator as well as the diagram. The additional package node and elements underneath it will not affect the functionality of the application.

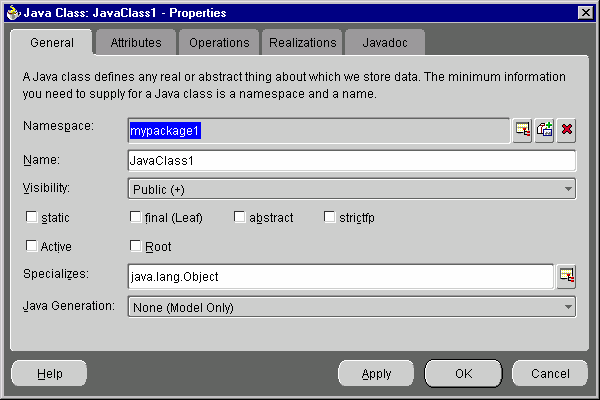

The Class Modeler section includes a tabbed Java Class dialog that is only available once a class had been placed in a UML class diagram. The Java Class dialog shown in Figure 3 is accessed by double clicking the class name under the package node in the application project. The multi-tabbed Java class dialog allows you to modify the attributes, operations, realizations and Javadoc associated with the class.

Figure 3: Java Class dialog

The tabs are fairly self-explanatory. Each tab also includes a Help button to explain each of the options available. By examining the underlying code, you can view the results of any modifications made in the dialog. Because of the dual package representation of classes and BC4J objects, you may want to suppress the additional display.

It is possible to change the way in which the Navigator is organized and displayed by selecting a project and selecting Project|Show Categories from the Menu or the Show Categories icon in the Navigator toolbar.

Associations

Associations between classes will only affect the underlying code if they are directed (include the arrow). A simple (non-directed) association between Java classes has no effect on either class.

If you have a directed association between two classes, there will be a small modification to the class on the opposite side from the arrowhead. All that is done is to create a variable to store objects in the other class.

If the association on the side with the arrowhead has a cardinality of 0..1 or 1 (meaning that at most one object can be pointed to), then the variable created is a simple public variable. If the cardinality is * or 1..*, an array variable is created.

The name on the end of the association (role in UML) is used to specify the name of the variable. Therefore, you must have a role specified to have a directional association. If you make the association bi-directional (arrows on both sides), then both classes will get stubs to allow the objects to point to each other.

Specialized Associations

Compositions (aggregations and strong aggregations) are treated in the same way as associations. The composition symbol has no effect on the generated code.

Associations (directional or otherwise), when either of the objects being connected to is an interface, act exactly as if they were connecting to regular Java classes.

A generalization between two Java classes will be implemented so that the specialization class extends the generalization class. The Class Modeler will not allow you to create a generalization from an interface.
