Designed Application Flexibility Using Business Rules

Why Application Flexibility?



While this should have been apparent from the significant failures of many of the so-called ‘Best of Breed’ approaches, resulting in incredible wastage of resources, both human and monetary, the following excerpts form a very recent article, ‘ What's Wrong With Application Software? Business Changes, Software Must Change With The Business’ by Olin Thompson dated March 12, 2003, once again brings this issue to the forefront.



Business changes constantly, in small ways and large. It is rare to find an application product that can change once it is implemented. This gap is a reality leading to dissatisfaction and the application being a drag on the business. This gap, the lack of the ability to change, costs the business dearly. Software needs to be the agent of change, not the enemy of change.”



“Successful companies are increasingly taking on new business models and business processes as an ongoing way to outmaneuver their competition. These companies have found that there is an inherent conflict between the fluidity and agility with which they want to run their businesses and the rigidity and control with which their systems operate. This incompatibility between agile businesses and static systems has hampered efforts to change the business effectively and rapidly to capitalize on business opportunities. Whether a company is aggressive in its adoption of change or conservative, change is inevitable and ongoing.



A gap exists between the change needed by the business and the ability of the enterprise architecture to accommodate or facilitate those changes.



The ability to successfully address this gap forms the core of this presentation.

Business Rules Implementation



Business rules provide a formal way of managing and automating an organization’s policies and procedures so that the business behaves and evolves as desired by the management. Generally a business rules system is an automated system in which the rules are separated, logically and physically, from other aspects of the system and shared across data stores, user interfaces, and applications. As long as the person who understands the business defines the rules directly, there are many advantages, including elimination of the serious problems created by miscommunication between analysts and programmers.



The implementation of this concept here is effected through incorporation of the following:



·         Simple and yet powerful rule definition capability – the experienced user defines the rules logically in English and this is programmed in directly for implementation

·         Unlimited data/functionality access for incorporation into the rules

·         Rules remain separated from the application code and thus any sensitive rules (e.g. related to pricing, compensation, commissions, technical quality parameters and others) can remain totally proprietary to the company without causing any problems with application software upgrades

·         Practically unlimited customizations and modifications can be carried out and implemented rapidly to support fast changing business environment

·         All technology within the Oracle RDBMS and Tools sphere



Technical Design



The basic architecture of the design using Oracle Forms and PL/SQL is shown in Figure 1. The example here pertains to a salesperson commissions application, where there can be almost unlimited variations of the logic to determine the effective incentive for salespersons, depending on diverse factors such as product, customer, region, promotions, environment, marketing strategies.




Rule identification (10 A/N) key



Rule Maintenance  Functionality



Short Rule Description



Rule Type – Additional qualifier(s) for the Rule



Latest Rule Update Date



User Identification of the designer of  the Rule























Figure 1.

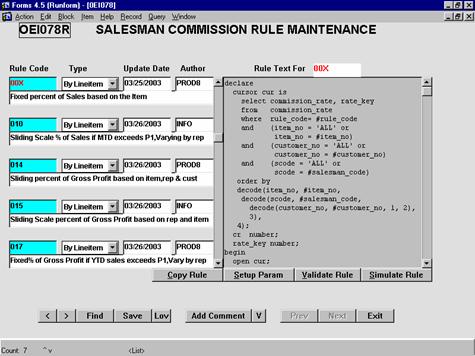

The following figures show the rule creation and maintenance capabilities.



The Validate Rule verifies the syntax of the PL/SQL code inserted into the ‘RULE _TEXT’ field.

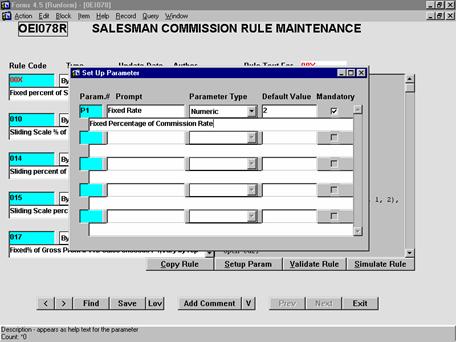

Figure 2 shows the Setup Parameter feature. This allows the rule designer to set up multiple (unlimited) additional parameters (constants) independently of the Rule, if so required by the business logic for the rule.












Setup Parameter Function Shown









Figure 2.

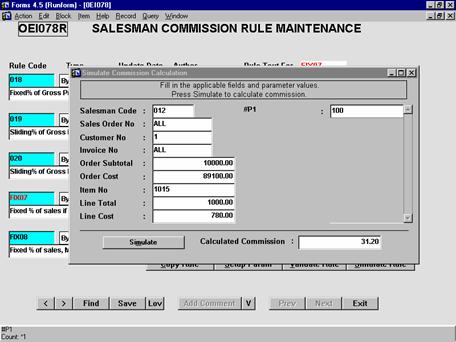

The Simulate Rule feature – Figure 3 - allows the simulated execution of the rule to determine if the programmed rule logic returns the desired values. Designers of the rule can enter appropriate values for all the related variables (tokens) of the rule to check the correctness of the calculations.

































Figure 3.

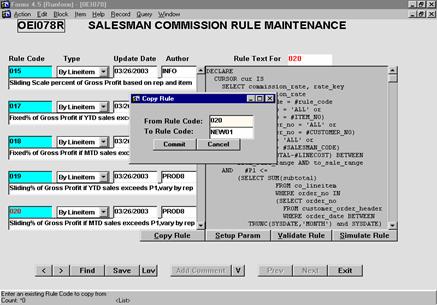

The Copy Rule feature - Figure 4 - provides the rule designer with the flexibility to reuse a rule by copying the content of one rule to create another rule and then modifying it as required







Figure 4.




Demonstration



The demonstration shows the simulation of diverse commission rules using the described architecture.

The generic application flow diagram is given below in Figure 5. The commissions are calculated at the time of the creation of the invoice to the customer on shipment of the order.



CRM  - Salesperson











Accounting System





Customer


                                        Order






                                        Invoice










                                                                           Order Information

                                                                                     Salesperson Information

Rounded Rectangle:     Rule based
Salesperson
Commissions



Salesperson


                                                                                                                           Commissions










Figure 5.





Once the rules have been set up, the salespersons are assigned the appropriate rule(s) as dictated by the marketing strategy and related incentive schemes.



The steps involved in the execution process of the diverse triggers, stored procedures and functions are shown in figure 6.



































Code Execution Process Flow
Text Box: External
Entity (Order Details, Rule Details)














Call Commission_Rule_Package. Simulate_commission


      Salesman




                                                                                    Click on



 Commission Rule table                                                  Simulate button




                                                                              Pass rule code                                Display

                  Return rule text

Call Execute_Rule


                                                                                                  Return Commission

Flowchart: Display: Commission



     get_rule

                            Rule code                                                  return commission




                                    Return Rule Text










        Parse_#Rule






                                                                                            If  SQL                  if PLSQL




                            Next_token                                                                  returns commission



















Execute_sql also uses

DBMS_SQL.FET_ROWS



Execute_plsql uses

DBMS_SQL.PARSE

DBMS_SQL.EXECUTE









                        Substitute_variable

                                       Substitute # variables

                                       With Values passes by external entity

                                         When calling the simulate_commission















   Get_parameter                                                                        Commission rule param

Figure 6.



Rules-driven Commission

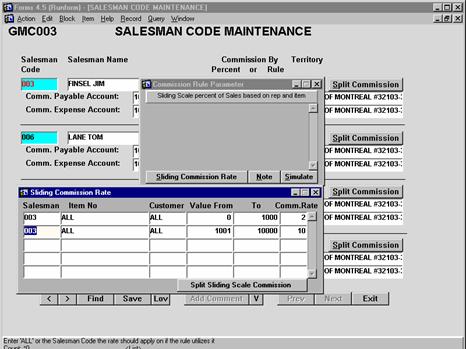

Figure 7 displays the salesperson’s commission elated information. Sales commissions are calculated for a salesperson depending on the commission percentage or using a commission rule.













Figure 7.



If the commission by percentage logic is used, then the commission is calculated using the fixed percentage entered in this field. If the commission by rule logic is used, the commission is calculated using the rule identifier entered in the commission by rule field.



Other extensions and variations to this feature include the splitting of commissions between salespersons when sharing territories, customers and products and providing for sliding scales. The applicable rule may contain more complex logic if needed.

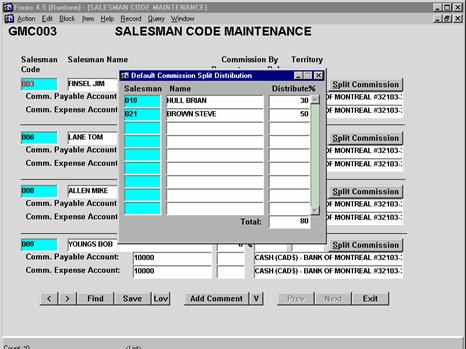

The split commission feature – Figures 8, 9 and 10 - is used to set up the default commission splitting percentages among the multiple salespersons, if applicable.















Salesperson identifier














Total Percentage of commission distributed among salespersons






Figure 8.

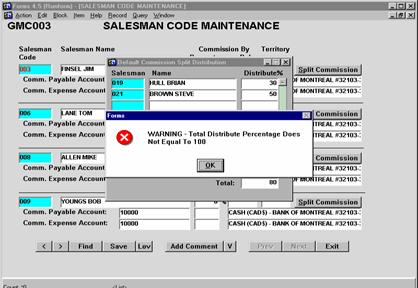

If the split percentage of commission total is not equal to 100% then a warning is issued – Figure 9.









Figure 9.






Commission Rate





















Figure 10.



Scope of Applicability



The method described in this presentation has wide-ranging applicability. The technique has been applied to major business areas such as pricing, discounting, costing, overhead applications, driver definitions in activity based costing, maintenance data analysis and subsequent triggering of appropriate actions, focused business activity monitoring, quality assurance, testing, order processing optimization for handling very high volumes, dynamic increase in warehouse management efficiency through highly flexible putaway, pick and replenishment strategies, inventory valuation, to name just a few.



The use of PL/SQL enables total access to all data available in the Oracle database, thus allowing virtually limitless scope and flexibility to the rules designer. Particularly advantageous is the significant reduction of compatibility problems between software releases, as the customer specific rules (i.e. business logic) are no longer hard coded into the forms, reports and any custom stored procedures, packages and functions. Since the rules are written in native PL/SQL, all capabilities of the language are available including executing stores packages, procedures, and functions directly from the rules. The capability of business rules generators such as BRIM from Dulcian Inc. thus becomes strongly complimentary as power users can use such tools directly to generate the PL/SQL rules code using the built-in UML components. The bridge to java is thus also available through the well-known Oracle’s and other third party tools for web deployment and PL/SQL to java conversion facilities.



Measured against the requirements stipulated in the previously referred article from Olin Thompson, this technique substantially addresses the following (just to use a few examples):

·         The next generation of enterprise architecture must allow for business change to be adopted on an on-demand basis as the business evolves.”

        This is what the described method is particularly geared to resolve.



·         Lower the penalties for modifications Today, the penalties for modifying are so high that companies find it difficult to justify all but the most important changes. With the dropping of the cost, time, and quality penalties, it becomes increasingly practical for the system to be responsive to the needs of the business.”



This design architecture allows rapid and substantially lowered cost of implementing minor to major changes as demanded by the changing business environment, thus addressing this very significant issue.



·         Provide flexibility for options not initially conceived by the vendor Companies need best practice, but they also need "our practice" and the ability to respond to the needs of customers and others. If the vendor has not built in the option, the company should be still being able to provide the function required.”



A key element in this approach, as those ‘Best of Breed’ offered by many financially successful vendors have not at all resolved the ‘our practice’ issue, resulting in significantly financially unsuccessful business and ROI issues for the customers.
